Automated Conveyor Guide Rail Systems: How EZGUIDE Reduces Downtime and Boosts Productivity

Guide rails are the components mounted along conveyor edges that keep products aligned, stable, and properly oriented as they move through a production line. Without them, bottles tip, cartons drift, and blister packs jam at merge points and transfers.

Traditional guide rail systems rely on solid-mounted shafts or rods with manual locking mechanisms. To adjust the width for a different product, an operator has to stop the line, grab tools, loosen each bracket, slide the rail into position, and lock it back down. On long conveyor runs with dozens of brackets, this process can take 20 to 30 minutes per changeover, per conveyor section.

An automated conveyor guide rail system removes the tooling step entirely. These systems use mechanisms that allow operators to unlock, reposition, and lock rails with minimal effort and zero hand tools. The most advanced versions, like Span Tech's EZGUIDE, accomplish this through a unique tab-lock design that keeps all mechanical components contained within the conveyor frame. No protruding rods, no loose hardware, no wasted time.

Before exploring what makes EZGUIDE different, it helps to understand why traditional conveyor guide rail adjustment creates such a bottleneck.

• Time loss per changeover. Manual rail systems require an operator to physically loosen and retighten each bracket along the conveyor. On a standard straight conveyor run with brackets spaced every 24 inches, a 40-foot section could have 20 adjustment points per side. At even 30 seconds per bracket, that's 20 minutes of labor before the line restarts.
• Inconsistent alignment. When humans set rail positions manually, the results vary from operator to operator and shift to shift. Uneven spacing causes products to wobble, jam, or misalign at downstream equipment like labelers, case packers, and metal detectors. Those jams create secondary stoppages that compound the original changeover delay.
• Safety hazards. Most traditional guide rail brackets use protruding rods that extend beyond the conveyor frame when rails are adjusted inward. These exposed rods are snagging hazards for clothing, lanyards, and skin. In high-traffic areas around conveyor systems, they represent a preventable injury risk.
• Curve limitations. Many manual guide rail systems only function on straight conveyor sections. When a line includes curved conveyors, operators often have to use entirely separate rail hardware or fixed guides that can't adjust at all. This forces facilities to either limit their product mix or accept suboptimal guidance through turns.

Span Tech developed the EZGUIDE guide rail system specifically to address every limitation of traditional manual rails. Here's how it works and why it matters for productivity in conveyor systems.

Tool-Free Adjustment in Seconds

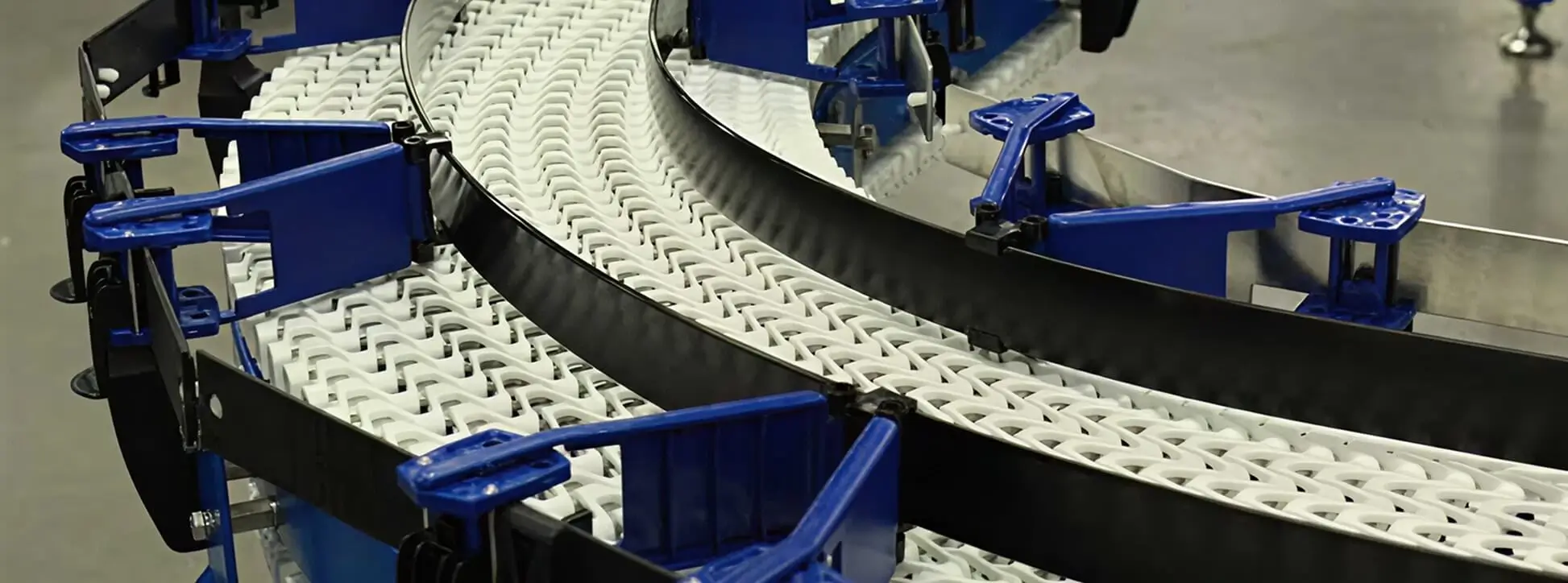

EZGUIDE rails adjust with a simple lock-tab mechanism. Operators unlock the tab, slide the rail to the desired width, and lock it back into position. No wrenches, no Allen keys, no fumbling with hardware. This cuts changeover time from 20+ minutes down to a fraction of that, depending on conveyor length.

For facilities running frequent product changeovers across multiple standard conveyor components, this time savings compounds rapidly. A line that changes products four times per shift could recover over an hour of production time daily with EZGUIDE installed.

No Protruding Brackets or Rods

The EZGUIDE system keeps all mechanical components contained within the conveyor profile. When the rails are adjusted to any width, nothing protrudes from the sides of the conveyor. This is a significant safety improvement over traditional systems where shafts and rods extend outward, especially in tight facility layouts where operators walk close to running conveyor lines.

Adjustable Through Curves

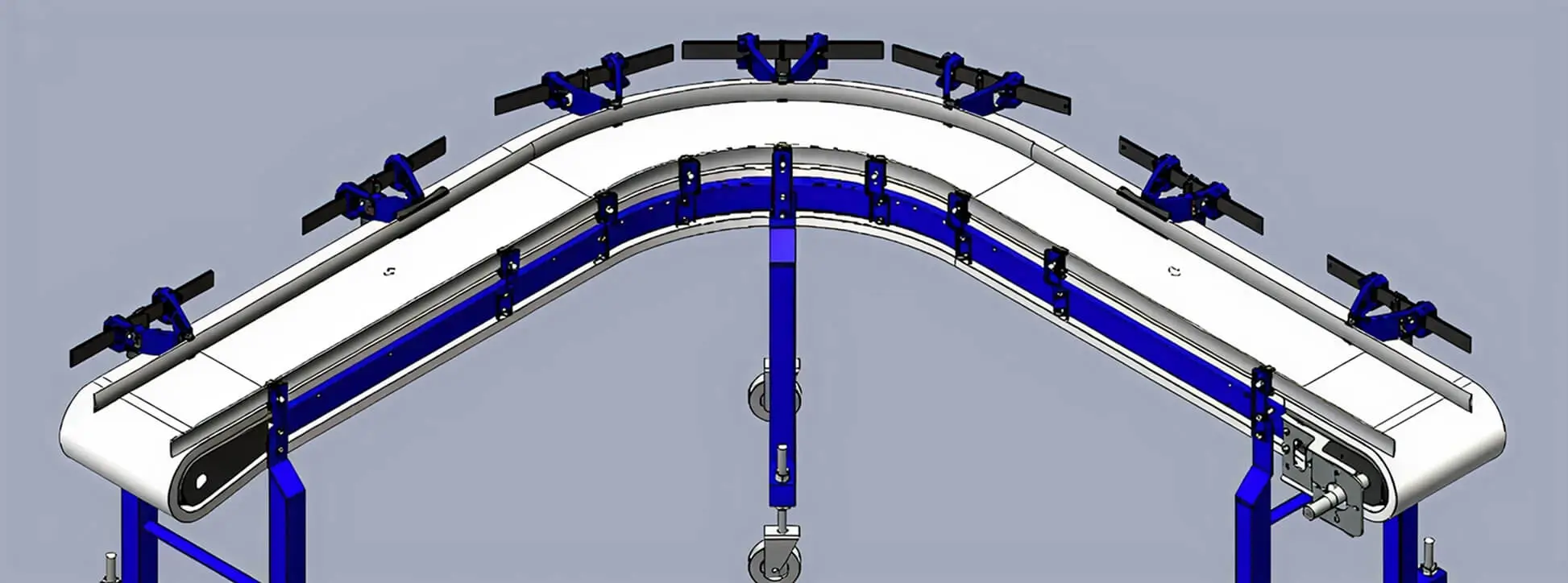

This is where EZGUIDE separates itself from virtually every other guide rail system on the market. Traditional adjustable rails work on straight sections, but they can't handle curves because changing the width of a guide through a radius requires the rail to bend and change length simultaneously. EZGUIDE's proprietary design solves both problems, allowing full-width adjustability through curved conveyor sections. For facilities with complex layouts that include directional changes, this eliminates the need for separate fixed-rail hardware on curves.

Consistent, Repeatable Positioning

Because EZGUIDE uses a mechanical locking system rather than manual tightening, rail positions are consistent every time. This repeatability reduces jams, improves product flow at sorting and merging points, and ensures downstream equipment receives products in the correct orientation.

The EZGUIDE guide rail system is built for any industry that runs multiple product sizes on a shared conveyor line. Here are the environments where it delivers the greatest return.

Food and Beverage Production

Bottling lines, canning operations, and packaged food facilities frequently switch between container sizes throughout the day. EZGUIDE allows operators to adjust rail widths between runs without stopping to gather tools or call maintenance. Combined with Span Tech's open-frame, washdown-ready conveyor chain designs, the system keeps food production and beverage production lines moving with minimal interruption.

Pharmaceutical and Cosmetics Manufacturing

Precision matters in pharma. Blister packs, vials, and small containers need exact positioning to pass through inspection, labeling, and packaging stations without errors. EZGUIDE's consistent rail positioning helps maintain that precision, while the non-protruding design supports cleanroom and GMP-compliant environments where cosmetics and pharmaceutical products are handled.

E-Commerce and Distribution

High-volume fulfillment centers deal with an unpredictable mix of parcel sizes. EZGUIDE makes it practical to adjust conveyors for different product dimensions throughout the day, keeping e-commerce sortation and scanning operations running accurately even when product mix changes on short notice.

Packaging Operations

For facilities focused on packaging line efficiency, EZGUIDE addresses one of the most common sources of wasted time. Whether you're guiding trays into a case packer or aligning cartons before shrink-wrapping, fast and accurate rail adjustment keeps throughput high and rejects low.

One of the most common questions from operations managers is whether EZGUIDE can be added to conveyors already in the field. The answer is yes. EZGUIDE is designed as a modular add-on that integrates with Span Tech's existing conveyor platforms. Facilities don't need to replace entire conveyor sections to gain the benefits of automated guide rails in the USA or anywhere else Span Tech equipment operates.

The system is sold in 16-foot lengths and uses brackets spaced at a maximum of 24 inches. It requires a minimum of two contact points per rail section and is designed to overlap in the direction of product flow at each section junction. These specifications make it straightforward to plan a retrofit around existing conveyor components and support structures.

For distributors and integrators helping clients upgrade their lines, EZGUIDE represents a high-impact, low-disruption improvement that delivers measurable ROI through reduced changeover time and fewer product jams.

The financial case for upgrading to an EZGUIDE guide rail system is built on three factors: time recovered, waste reduced, and maintenance avoided.

• Time recovered. If a manual changeover takes 20 minutes and EZGUIDE cuts that to 2 minutes, a facility running four changeovers per shift across two shifts recovers over two hours of production time daily. Multiply that by the throughput rate of your line, and the value adds up quickly.
• Waste reduced. Inconsistent rail positioning causes jams, product damage, and labeling errors. Each of those events generates waste. EZGUIDE's repeatable positioning reduces these incidents, which directly improves yield.
• Maintenance avoided. Traditional guide rail brackets with protruding rods wear unevenly, loosen over time, and require periodic retightening. EZGUIDE's enclosed mechanism is lower maintenance by design, freeing up your service and maintenance team for higher-priority tasks.

Struggling with complicated guide rail adjustments? Span Tech’s EZGUIDE Conveyor Guide Rail System offers a tool-free solution designed to optimize product handling, reduce downtime, and improve efficiency. Whether you’re in food processing, pharmaceuticals, packaging, or e-commerce, EZGUIDE ensures seamless product flow without time consuming manual adjustments.

If product changeovers are slowing your line, EZGUIDE offers a proven path to faster transitions, safer operations, and higher throughput. Whether you're outfitting a new conveyor system or retrofitting existing equipment, Span Tech's team can help you identify the right configuration for your facility.

Are automated guide rail systems like EZGUIDE suitable for harsh or sanitary environments?

Yes. EZGUIDE is built with materials that meet the demands of washdown and sanitary environments commonly found in food, beverage, and pharmaceutical production. The system pairs with Span Tech's stainless steel and anodized aluminum conveyor frames, and its enclosed design prevents debris accumulation in the adjustment mechanism. There are no exposed rods or open channels where contaminants can collect, making it well suited for facilities that follow FDA, USDA, or GMP sanitation protocols. For additional sanitation access, Span Tech conveyors also offer features like clean-out holes and drip trays to complement the EZGUIDE system.

Can EZGUIDE handle frequent or rapid product changeovers without losing alignment or causing jams?

This is exactly the scenario EZGUIDE was designed for. The tab-lock mechanism provides consistent, repeatable positioning regardless of how many times per shift the rails are adjusted. Because there are no bolts to torque or shafts to align, the risk of operator error during changeovers is significantly reduced. Facilities running high-mix, high-volume operations report that EZGUIDE has meaningfully improved their changeover speed and product flow consistency. As one maintenance manager at Athea Packaging noted, the system made it faster and easier to switch between container sizes on a bottle filling line.

What are the maintenance requirements for automated guide rail systems?

EZGUIDE is a low-maintenance system. Because the locking mechanism is entirely mechanical with no pneumatic or electrical components, there are no actuators, solenoids, or sensors to service. Routine maintenance is limited to periodic inspection of the lock tabs and rail surfaces for wear. The enclosed bracket design also protects internal components from the debris, moisture, and washdown chemicals that typically degrade exposed guide rail hardware. For facilities looking to establish a broader maintenance routine, Span Tech offers preventive maintenance resources and troubleshooting guides for all conveyor components.
